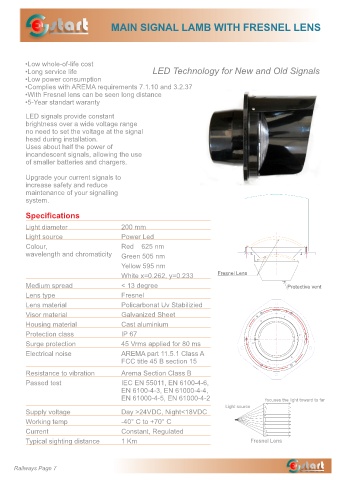

start MAIN SIGNAL LAMB WITH FRESNEL LENS

•Low whole-of-life cost
•Long service life LED Technology for New and Old Signals
•Low power consumption
•Complies with AREMA requirements 7.1.10 and 3.2.37
•With Fresnel lens can be seen long distance
•5-Year standart waranty

LED signals provide constant
brightness over a wide voltage range
no need to set the voltage at the signal
head during installation.
Uses about half the power of
incandescent signals, allowing the use
of smaller batteries and chargers.

Upgrade your current signals to
increase safety and reduce
maintenance of your signalling
system.

Specifications
Light diameter 200 mm
Light source Power Led

Colour, Red 625 nm
wavelength and chromaticity Green 505 nm

Yellow 595 nm
White x=0.262, y=0.233 Fresnel Lens
Medium spread < 13 degree Protective vent
Lens type Fresnel
Lens material Policarbonat Uv Stabilizied
Visor material Galvanized Sheet
Housing material Cast aluminium

Protection class IP 67
Surge protection 45 Vrms applied for 80 ms
Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15
Resistance to vibration Arema Section Class B
Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2 focuses the light toward to far
Light source
Supply voltage Day >24VDC, Night<18VDC
Working temp -40° C to +70° C
Current Constant, Regulated
Typical sighting distance 1 Km Fresnel Lens
