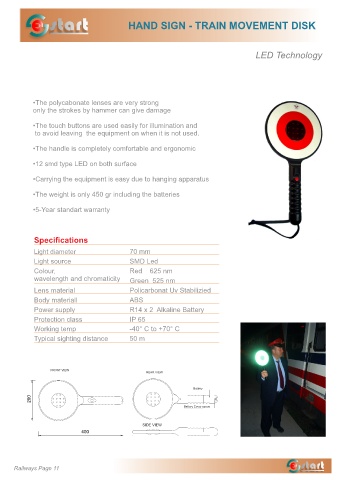

Page 13 - estart katalog

start HAND SIGN - TRAIN MOVEMENT DISK

LED Technology

•The polycabonate lenses are very strong
only the strokes by hammer can give damage

•The touch buttons are used easily for illumination and
to avoid leaving the equipment on when it is not used.

•The handle is completely comfortable and ergonomic

•12 smd type LED on both surface

•Carrying the equipment is easy due to hanging apparatus

•The weight is only 450 gr including the batteries

•5-Year standart warranty

Specifications

Light diameter 70 mm
Light source SMD Led
Colour, Red 625 nm
wavelength and chromaticity Green 525 nm

Lens material Policarbonat Uv Stabilizied
Body materiall ABS
Power supply R14 x 2 Alkaline Battery

Protection class IP 65
Working temp -40° C to +70° C
Typical sighting distance 50 m

FRONT VIEW
REAR VIEW

Battery
200
Battery Cover screw

SIDE VIEW
400
