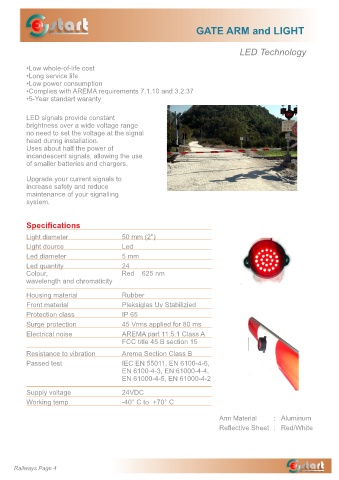

GATE ARM and LIGHT

LED Technology

•Low whole-of-life cost
•Long service life
•Low power consumption
•Complies with AREMA requirements 7.1.10 and 3.2.37
•5-Year standart waranty

LED signals provide constant
brightness over a wide voltage range
no need to set the voltage at the signal
head during installation.
Uses about half the power of
incandescent signals, allowing the use
of smaller batteries and chargers.

Upgrade your current signals to
increase safety and reduce
maintenance of your signalling
system.

Specifications
Light diameter 50 mm (2'')

Light dource Led
Led diameter 5 mm
Led quantity 24
Colour, Red 625 nm
wavelength and chromaticity

Housing material Rubber
Front material Pleksiglas Uv Stabilizied
Protection class IP 65
Surge protection 45 Vrms applied for 80 ms

Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15

Resistance to vibration Arema Section Class B
Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Supply voltage 24VDC
Working temp -40° C to +70° C

Arm Material : Aluminum
Reflective Sheet : Red/White
