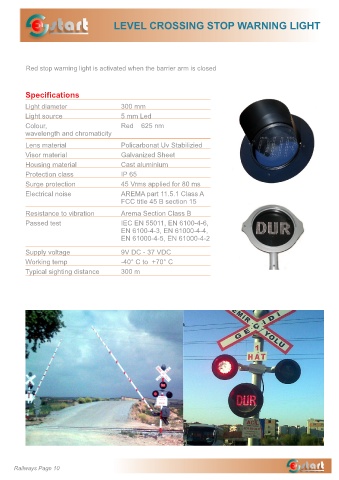

start LEVEL CROSSING STOP WARNING LIGHT

Red stop warning light is activated when the barrier arm is closed

Specifications

Light diameter 300 mm
Light source 5 mm Led
Colour, Red 625 nm
wavelength and chromaticity
Lens material Policarbonat Uv Stabilizied
Visor material Galvanized Sheet

Housing material Cast aluminium
Protection class IP 65
Surge protection 45 Vrms applied for 80 ms
Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15
Resistance to vibration Arema Section Class B
Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Supply voltage 9V DC - 37 VDC
Working temp -40° C to +70° C
Typical sighting distance 300 m
