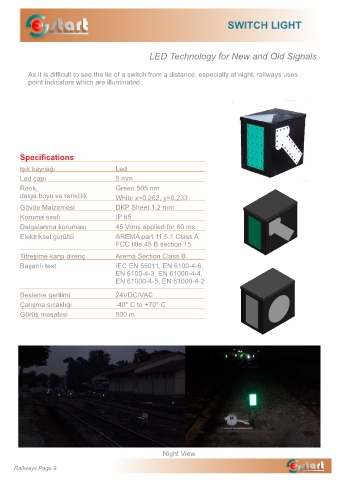

start SWITCH LIGHT

LED Technology for New and Old Signals

As it is difficult to see the lie of a switch from a distance, especially at night, railways uses
point indicators which are illuminated.

Specifications
Işık kaynağı Led
Led çapı 5 mm

Renk, Green 505 nm
dalga boyu ve renklilik White x=0.262, y=0.233

Gövde Malzemesi DKP Sheet 1.2 mm
Koruma sınıfı IP 65
Dalgalanma koruması 45 Vrms applied for 80 ms
Elektriksel gürültü AREMA part 11.5.1 Class A
FCC title 45 B section 15

Titreşime karşı direnç Arema Section Class B
Başarılı test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Besleme gerilimi 24VDC/VAC
Çalışma sıcaklığı -40° C to +70° C
Görüş mesafesi 500 m

Night View
