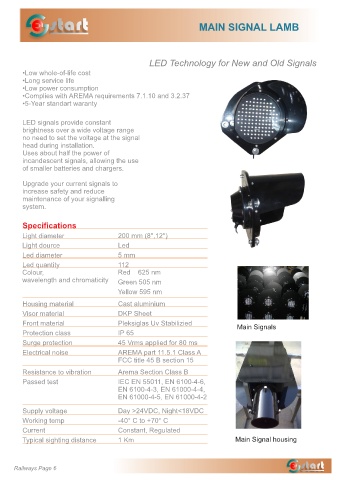

start MAIN SIGNAL LAMB

LED Technology for New and Old Signals
•Low whole-of-life cost
•Long service life
•Low power consumption
•Complies with AREMA requirements 7.1.10 and 3.2.37
•5-Year standart waranty

LED signals provide constant
brightness over a wide voltage range
no need to set the voltage at the signal
head during installation.
Uses about half the power of
incandescent signals, allowing the use
of smaller batteries and chargers.

Upgrade your current signals to
increase safety and reduce
maintenance of your signalling
system.

Specifications
Light diameter 200 mm (8'',12'')
Light dource Led
Led diameter 5 mm

Led quantity 112
Colour, Red 625 nm
wavelength and chromaticity Green 505 nm
Yellow 595 nm

Housing material Cast aluminium
Visor material DKP Sheet
Front material Pleksiglas Uv Stabilizied
Main Signals
Protection class IP 65
Surge protection 45 Vrms applied for 80 ms

Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15

Resistance to vibration Arema Section Class B
Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Supply voltage Day >24VDC, Night<18VDC
Working temp -40° C to +70° C
Current Constant, Regulated
Typical sighting distance 1 Km Main Signal housing
