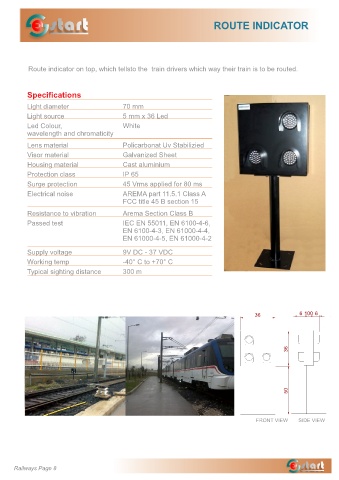

start ROUTE INDICATOR

Route indicator on top, which tellsto the train drivers which way their train is to be routed.

Specifications

Light diameter 70 mm
Light source 5 mm x 36 Led
Led Colour, White
wavelength and chromaticity
Lens material Policarbonat Uv Stabilizied
Visor material Galvanized Sheet

Housing material Cast aluminium
Protection class IP 65
Surge protection 45 Vrms applied for 80 ms
Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15
Resistance to vibration Arema Section Class B
Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Supply voltage 9V DC - 37 VDC
Working temp -40° C to +70° C
Typical sighting distance 300 m

36 6 100 6

36

50

FRONT VIEW SIDE VIEW
