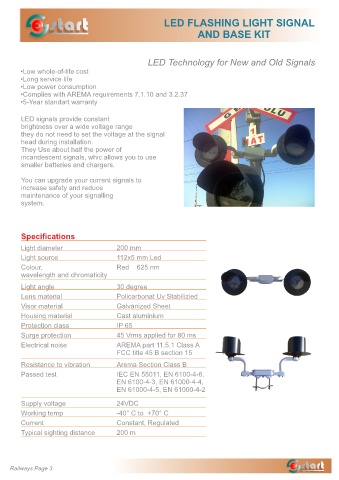

start LED FLASHING LIGHT SIGNAL

AND BASE KIT

LED Technology for New and Old Signals
•Low whole-of-life cost
•Long service life
•Low power consumption
•Complies with AREMA requirements 7.1.10 and 3.2.37
•5-Year standart warranty

LED signals provide constant
brightness over a wide voltage range
they do not need to set the voltage at the signal
head during installation.
They Use about half the power of
incandescent signals, whic allows you to use
smaller batteries and chargers.

You can upgrade your current signals to
increase safety and reduce
maintenance of your signalling
system.

Specifications

Light diameter 200 mm
Light source 112x5 mm Led
Colour, Red 625 nm
wavelength and chromaticity
Light angle 30 degree
Lens material Policarbonat Uv Stabilizied
Visor material Galvanized Sheet

Housing material Cast aluminium
Protection class IP 65
Surge protection 45 Vrms applied for 80 ms
Electrical noise AREMA part 11.5.1 Class A
FCC title 45 B section 15
Resistance to vibration Arema Section Class B

Passed test IEC EN 55011, EN 6100-4-6,
EN 6100-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-2

Supply voltage 24VDC
Working temp -40° C to +70° C
Current Constant, Regulated
Typical sighting distance 200 m
